5-Axis CNC Machined Aluminum Components for Semiconductor Inspection Equipment
Semiconductor inspection systems play a vital role in ensuring wafer quality, defect detection, dimensional measurement, and process validation throughout chip manufacturing. These high-precision systems rely not only on advanced optics and sensors but also on mechanically stable and accurately machined structural components.

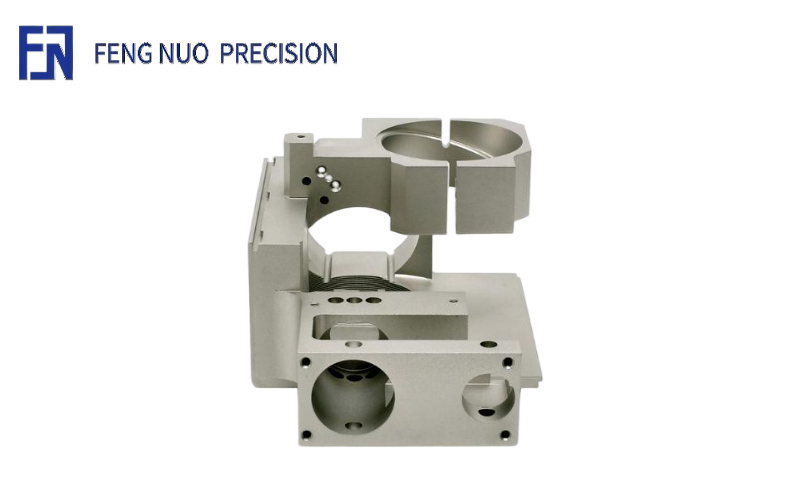

Our 5-axis CNC machined aluminum components for semiconductor inspection equipment are engineered to provide exceptional dimensional accuracy, structural rigidity, and surface integrity. Designed for use in optical inspection tools, wafer metrology systems, probe stations, and automated inspection platforms, these aluminum components support reliable and repeatable measurement performance.
In semiconductor environments, even micron-level deviations can influence inspection accuracy. Therefore, mechanical precision is fundamental to equipment reliability and process consistency.
Advanced 5-Axis Machining for Complex Inspection Structures
Semiconductor inspection equipment often includes:
Multi-plane optical mounting platforms
High-precision linear guide interfaces
Vibration-isolated structural frames
Integrated cable routing channels
Thin-wall structural supports
Multi-angle sensor positioning modules
5-axis CNC machining enables simultaneous multi-directional cutting, allowing complex geometries to be produced with high positional accuracy. By minimizing repositioning during machining, we reduce tolerance stack-up and ensure precise geometric relationships between critical reference surfaces.
This is particularly important in inspection systems where optical alignment and sensor positioning must remain stable over time.
Aluminum Materials for Semiconductor Inspection Devices
Aluminum alloys are widely used in semiconductor inspection equipment due to their lightweight properties, machinability, and compatibility with cleanroom environments.
Typical materials include:
6061-T6 for structural frames and mounting bases
High-stability aluminum plates for optical platforms
Specialized aluminum alloys for dimensional stability
Anodizable aluminum grades for cleanroom applications
Aluminum’s low weight reduces system inertia in automated inspection equipment while maintaining structural stiffness necessary for vibration control.
Semiconductor Industry Manufacturing Requirements
Inspection equipment components must meet strict quality and cleanliness standards. Our machining processes are structured in accordance with recognized manufacturing practices, including:
ISO 9001 quality management systems
Process documentation and traceability
First Article Inspection (FAI)
Precision geometric tolerance control
Clean handling and packaging procedures
Dimensional verification is performed using coordinate measuring machines (CMM), laser measurement systems, and calibrated inspection tools. Critical features such as flatness, perpendicularity, and positional accuracy are carefully controlled.
For semiconductor inspection equipment, flatness and stability of mounting platforms are especially important to maintain accurate optical alignment.
Engineering Considerations in Inspection Equipment Components
Manufacturing aluminum components for semiconductor inspection devices involves several key technical factors:
1. Structural Stability
Inspection systems require vibration resistance to ensure accurate measurement results. Machined components must maintain rigidity under dynamic conditions.
2. Dimensional Precision
Alignment between optical modules, sensors, and mechanical stages requires tight tolerance control.
3. Thermal Behavior
Inspection equipment may operate continuously. Balanced machining strategies help reduce residual stress and maintain dimensional stability.
4. Surface Quality
Smooth and burr-free surfaces minimize particle generation and support cleanroom compatibility.
5-axis machining allows efficient production of lightweight yet rigid structures with integrated reinforcement features.
Surface Finishing and Post-Processing
Aluminum semiconductor inspection components often undergo additional finishing treatments to enhance durability and cleanliness, including:
Clear anodizing for corrosion protection
Hard anodizing for wear resistance
Fine bead blasting for uniform surface texture
Precision deburring and edge rounding
Laser marking for traceability
Anodized surfaces also reduce surface oxidation and improve resistance to environmental exposure within controlled manufacturing environments.
Additional CNC Components for Semiconductor Equipment
Beyond inspection device structures, CNC machining for semiconductor applications commonly includes:
Wafer handling frames
Vacuum chamber interface components
Gas distribution plates
Equipment support brackets
Structural enclosures
Prototype components for equipment development
5-axis CNC machining is particularly valuable for parts requiring multi-angle machining, tight geometric control, and consistent repeatability.
Commitment to Precision Semiconductor Manufacturing
Semiconductor inspection equipment demands mechanical precision that supports advanced measurement technology. Our 5-axis CNC machining capabilities, combined with structured quality control procedures and technical expertise, enable us to deliver aluminum components that meet high industry standards.
From precision mounting platforms to structural support modules, every component is produced with attention to dimensional accuracy, surface integrity, and long-term stability.
Whether supporting semiconductor equipment manufacturers, inspection system developers, or research institutions, our precision-machined aluminum components contribute to reliable and accurate semiconductor inspection processes.
