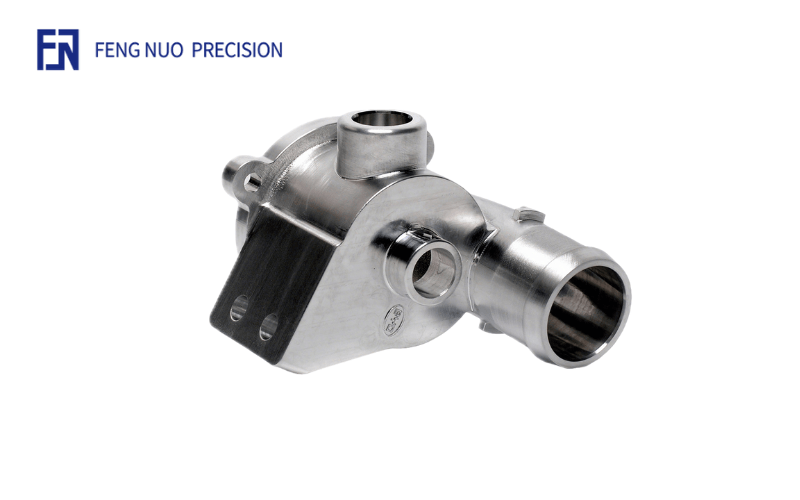

5-Axis CNC Machined Aluminum Automotive Water Pump Structural Components

In modern automotive engineering, thermal management is fundamental to engine efficiency, emission control, and overall vehicle reliability. The water pump plays a central role in circulating coolant through the engine block, cylinder head, radiator, and auxiliary cooling systems. The structural components of the automotive water pump must therefore deliver dimensional precision, sealing integrity, and long-term durability under continuous thermal and mechanical stress.

Our 5-axis CNC machined aluminum automotive water pump structural components are engineered to meet the strict performance standards of both conventional internal combustion vehicles and modern hybrid and electric platforms. Designed for structural strength, accurate alignment, and stable sealing performance, these aluminum parts support efficient coolant circulation and system reliability.

Structural Accuracy for Efficient Cooling Systems

Automotive water pump structures are not simple housings. They incorporate:

• Precision bearing seats

• Shaft alignment bores

• Impeller mounting interfaces

• Coolant flow channels

• Sealing grooves and O-ring seats

• Mounting surfaces for engine integration

Any deviation in these critical areas may lead to coolant leakage, bearing misalignment, vibration, or reduced pump efficiency.

5-axis CNC machining enables complex internal cavity machining and multi-surface finishing in a single coordinated process. By reducing repositioning errors, we improve concentricity between the shaft bore and impeller interface, ensuring smooth rotation and consistent coolant flow.

Aluminum as the Preferred Material for Automotive Pump Structures

Aluminum alloys are widely used in automotive cooling systems because of their:

• Lightweight characteristics

• Corrosion resistance in coolant environments

• Good thermal conductivity

• High machinability

• Compatibility with casting and billet machining

Common aluminum grades for water pump structural parts include 6061-T6 and automotive-grade aluminum alloys designed for strength and durability.

Lightweight aluminum construction reduces engine load and contributes to overall vehicle weight optimization, improving fuel efficiency and energy performance.

Automotive Manufacturing Standards and Process Compliance

Water pump structural components are part of critical engine systems. Manufacturing must follow structured quality control frameworks consistent with automotive industry requirements.

Our production processes align with recognized automotive manufacturing standards, including:

• IATF 16949-based quality management

• PPAP (Production Part Approval Process)

• First Article Inspection (FAI) validation

• Statistical Process Control (SPC)

• Full batch traceability

Dimensional inspections are performed using coordinate measuring machines (CMM) and precision gauges to verify tolerances, flatness, and concentricity.

Sealing surfaces and groove dimensions are carefully measured to ensure leak-free assembly under coolant pressure.

Engineering Considerations for Automotive Water Pump Components

Machining aluminum water pump structural parts involves several key technical challenges:

1. Sealing Surface Precision

Flatness and groove geometry directly affect gasket and O-ring sealing performance.

2. Shaft and Bearing Alignment

Concentricity between the shaft bore and mounting surfaces must be maintained to prevent premature bearing wear.

3. Thermal Stability

Water pumps operate under fluctuating temperature conditions. Controlled machining helps reduce residual stress and maintain structural stability.

4. Corrosion Resistance

Exposure to coolant requires material compatibility and appropriate surface finishing.

5-axis machining provides flexibility in producing complex flow channels and multi-angle mounting interfaces without compromising accuracy.

Surface Treatment and Post-Machining Processes

Depending on application requirements, aluminum automotive water pump components may undergo additional processes such as:

• Protective anodizing

• Chemical conversion coating

• Precision deburring and edge conditioning

• Leak testing verification

• Laser marking for part identification

Surface treatments enhance durability and corrosion resistance, contributing to long-term reliability in engine environments.

Broader Automotive CNC Machining Capabilities

In addition to water pump structural components, our CNC machining services for the automotive industry include:

• Transmission housings

• Turbocharger structural parts

• Engine mounting brackets

• Suspension components

• Cooling system heat sink structures

• Sensor and actuator housings

• Electric vehicle battery cooling components

5-axis CNC machining is particularly suitable for parts requiring complex internal passages, tight tolerance control, and high repeatability across production runs.

Commitment to Reliable Automotive Cooling Solutions

As vehicles become more efficient and technologically advanced, cooling systems must operate with greater precision and reliability. Structural integrity and dimensional accuracy are essential to maintaining stable coolant circulation and engine temperature control.

Our 5-axis CNC machining technology, combined with structured automotive quality management systems and precision inspection procedures, ensures the production of aluminum automotive water pump structural components that meet modern vehicle performance requirements.

From prototype development to serial production, we deliver precision-machined parts designed for durability, efficiency, and consistent automotive performance.
